INDUSTRY F421

3DGence INDUSTRY F421 is a best -in-class Industrial 3D Printing System enabling industry certified, end -use applications in Aerospace, Medical Transportation, and more

High quality, dimensional accuracy, and repeatable results for functional prototypes and end-use parts.

Advance from prototyping to rapid productionwith ultra-fast speed, wide range of industrial materials, connected software, and traceability

NASA 3DGence
wolgswagen
saab
ZF 3DGence
PHILIP MORRIS 3DGENCE
Wurth
BakerHughes
dlr
CRANE
osram
Tefal for 3DGence
Microsoft
schunk
3DGENCE CUSTOMER 1
hutchinson
produrue
plansee
bic
siemens
Miele
Thales
gsk
Zenith
hwa
cea

Features

f421

High Temperature Chamber Technology

Play Video

3DGENCE INDUSTRY F421 uses superior active heating technology to rapoidly reach and maintain a stable, unoform temperature up to 195ºC in the fully enclosed printing chamber

Constant, high temperature is required for strong layer – to layer bonding and maximum mechanical properties, while the uniformity ensures dimensional accuracy while avoiding distortion

Produce end-use parts for industry certified applications with high performance materials like ULTEM™, PEEK PEKK and CF-PEEK with 3DGENCE technology

Ultra Fast Speed

Play Video

3DGence INDUSTRY F421 kinematic system moves up to 400 mm/s when printing, ad up to 1000 mm/s with travel or idle moves for optimized dual-extruder printing

The high-speed capability allows up to 2.5x productivity compared to industry standard, while delivering strong, accurate, high-quality results

Achive rapid production of end-use parts for industry certified applicatons with high performance materials like ULTEM™,PEEK, PEKK and CF-PEEK

Play Video
Play Video

Generous Build Volume

Play Video

3DGENCE INDUSTRY F421 features a large build volume, 380 x 380 420 mm ( 15 x 15 15 x 16.5 in)

Utilize the generous volume for large, high-strength parts, or for sequential printing of multiple end-use parts per cycle

In addition to the innovative features of the F421, the volume enables you to scale your AM projects from prototypes to rapid production.

Composite ready industrial 3D printer

industry f421

Print high-performance materials that are additionally reinforced to make your end-use parts even more durable.

3DGence INDUSTRY F421 can be equipped with hardware allowing to print safely from reinforced materials. Improve the production of your most heavily loaded construction parts.

industry f421
Play Video

Safety

Play Video

Ensured user safety and work continuity proven by TUV Safety and Regular Production Surveillance.

With a focus on high-performance materials, it’s important to provide adequate emissions control. F421 filteration system offer unprecedented filtering efficiency among FFF AM platforms, capable of filtering: macro dust, nano dust (VOC, UFP), solvent vapour, noxious gasses, foreign particles.

3DGence INDUSTRY F421 is equipped with hardware allowing to print safely from reinforced materials. Improve the production of your most heavily loaded construction parts.

Interchangeable Print Modules

Play Video

The heart of the 3DGENCE INDUSTRY F421 printer is the interchangeable dual head print modules

Engineered by 3DGENCE for specific material ranges, the print module can bequick-swapped via a toolless process in 2 minutes

High, accurate output and less maitenance are core benefits of the innovative 3DGENCE modular system

Fully enclosed actively heated printing chamber

The heated chamber reaches a high temperature and maintains it on a stable level.

Print engineering and high-performance materials with the perfect print quality, exceptional mechanical strength and great dimensional accuracy. High-performance filaments require stable printing process and high extrusion and chamber temperature.

Heated material chamber

Play Video

The filament bay is a heated material chamber for 4 spools of material  ( up  to 2 kg/spool)

The chamber maintains hygroscopic filaments at low residual moisture

Produce high quality, strong parts for industry certified applications by ensuring proper material management and traceability through the printing process

Learn more about the Materia Management System here

Play Video

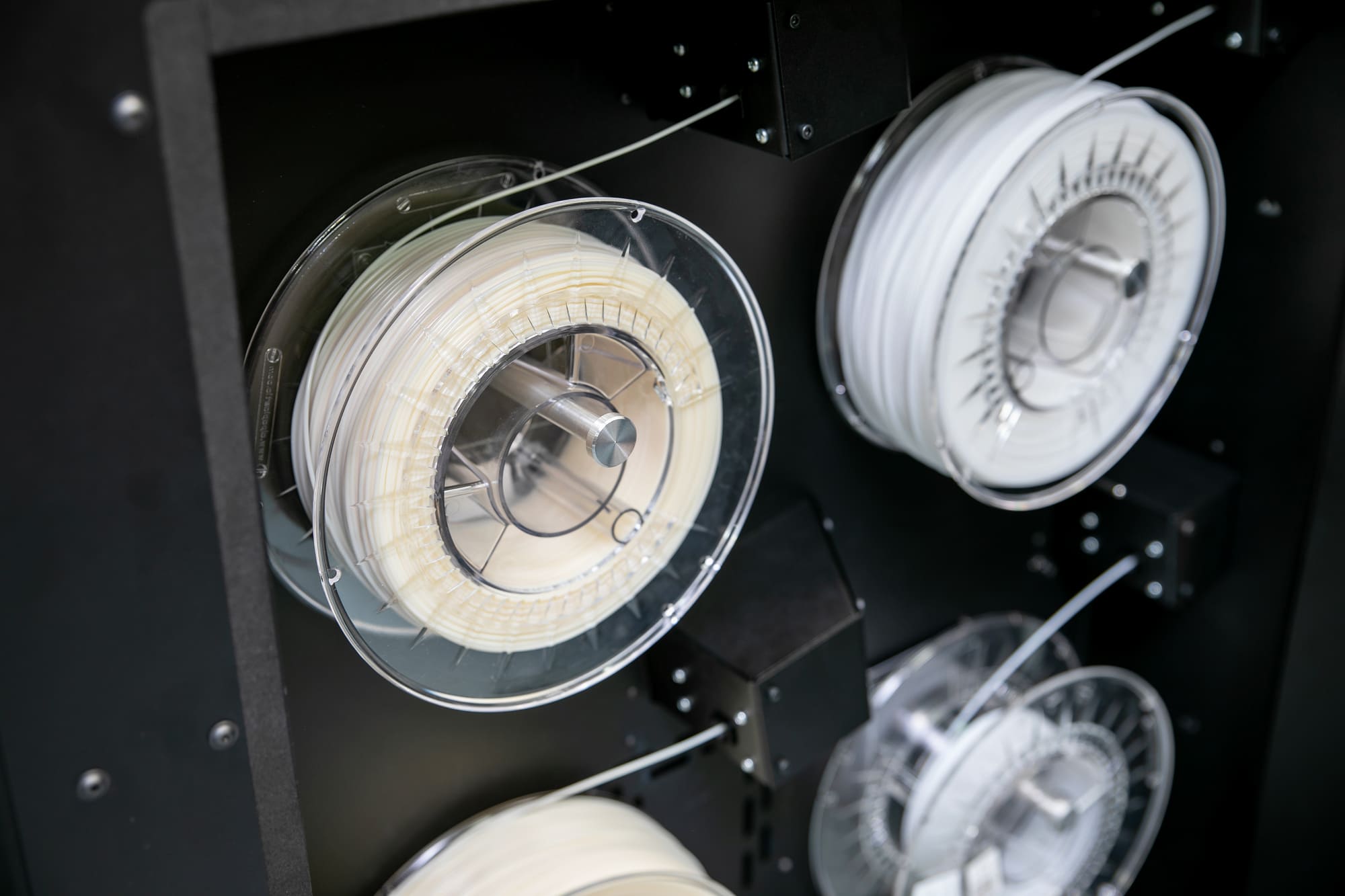

Smart Material Manager + Auto Spool Change

Smart Material Manager  automatically reads the filament type, preparation, weight, color, and print requirements to continuously manage the print process

Automatic spool change system for two primary materials and two suppoort materials ensures uninterrupted printing when spools run out

These advanced features increase your productivity while decreasing waste, and extend tarceability through the print process

Low maintenance solution

Autocalibration

industry f421

Always read to print. Low maintenance.

3DGENCE INDUSTRY F421 printer and modules are automatically calibrated to ensure print quality and dimensionl accuracy  – without the need any manual calibration.

industry f421

Case studies

Medical

Automotive

Architecture

Education

Filaments

PEEK

High-performance polymer from PAEK family which offers a unique combination of properties.

ULTEM™

High-performance polymer that is widely utilized in the most demanding market segments.

PEKK

High-performance polymer of a PAEK family with a wide application range.

ASA

Thermoplastic that combines mechanical strength, UV resistance and water resistance.

PC

One of the most durable, hardest and heat resistant engineering grade polymer.

HIPS

Polystyrene-based polymer similar to ABS but its mechanical properties are slightly higher.

3 Year Warranty

Continuous rapid production.

Best-In-Class Industry Warranty. 3 years of free limited warranty. Warranty is avaiable all over the world. We stand behind our technology so you can focus on keeping printing.

3D printing engineer is replacing a M280 module, an interchangeable accesory for industrial 3D printer 3DGence INDUSTRY F420 capable of 3D printing with PLA, ABS, ASA, PA6

Reliability and full functionality of the machines.

ndustrial 3D printer INDUSTRY F340. Close-up of name. View of printing chamber with printout inside.

Elimination of production stoppages
in order to maintain processes continuity.

Original spare and wear parts and professional service.

Follow maintenance activities and warranty checkups ​to maintain the warranty.

Material Management System

The 3DGence MMS ensures and maximizes part quality and integrity.

  • •Ensure proper material management for maximum results.
  • •ASTM D6980-12 tuned and preconfigured programs for materials.
  • •Real-time status of material preparation to 3DGence CONNECT.™
  • •Full traceability from material preparation through the print process.
  • •Integrated, programmed annealing for PAEK materials.
3DGENCE MATERIAL MANAGEMNT SYSTEM

Technical specification
